Applying the registration algorithm

To apply the registration algorithm, the following command is used:

sct_register_to_template -i t2.nii.gz -s t2_seg.nii.gz -lrootlet t2_rootlets.nii.gz -c t2 -ofolder rootlets-reg -qc ~/qc_singleSubj

Input arguments:

• -i : Input image

• -s : Segmented spinal cord corresponding to the input image

• -lrootlet : Dorsal and ventral nerve rootlets segmentation. Example: anat_rootlets.nii.gz

• -c : Contrast of the image. Specifying this determines the version of the template to use. (Here, -c t2 means that PAM50_t2.nii.gz will be used.)

• -ofolder : Output folder where the results will be saved. If the folder does not exist, it will be created.

• -qc : Directory for Quality Control reporting. QC reports allow us to evaluate the results slice-by-slice.

Output files/folders:

• anat2template.nii.gz : The anatomical subject image (in this case, t2.nii.gz) warped to the template space.

• template2anat.nii.gz : The template image (in this case, PAM50_t2.nii.gz) warped to the anatomical subject space.

• warp_anat2template.nii.gz : The 4D warping field that defines the transform from the anatomical image to the template image.

• warp_template2anat.nii.gz : The 4D warping field that defines the inverse transform from the template image to the anatomical image.

Once the command has finished, at the bottom of your terminal there will be instructions for inspecting the results using Quality Control (QC) reports. Optionally, If you have FSLeyes installed, a fsleyes command will printed as well.

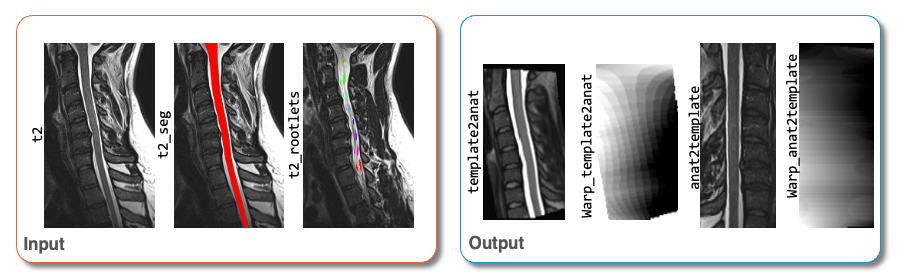

Input/output images for sct_register_to_template
